RazorCapture x4 SFP+
RazorCapture RC10Gx4 is a cost effective simple to use nanosecond hardware timestamped packet capture on quad(x4) 10Gbit ports. Our solution provides easy to install, configure and use in both offline and realtime packet analysis. Our philisophy is to do one thing, do it well, using open protocols and formats so we work together with other applications. Standing on the shoulders of giants such as tcpdump, WireShark, snort... RazorCapture is just one component of a large system of hardware and software for rock solid precision analysis of todays 10Gbit networks.
Specification
- x1 Full Height, Half Length PCIe x8 Gen2 board
- x4 SFP+ SR Transcivers
- x4 10G MultiMode SC/SC 50:50 Fiber Optic Tap
- x1 Linux Driver Source Code
- x1 Sample Applications & Source
- x1 C realtime analysis bindings
- x1 JAVA realtime analysis bindings
- x1 PYTHON realtime analysis bindings
- x1 Other utilities
|
|
Features
Nanoseccond Hardware Time Stamp
|
Accurate Timestamps down to +/- 1 nanoseccond is critical for many applications. Standard commodity NIC adapters at best provide 1,000 nanoseccond accuracy, RazorCapture card provides x1000 improvement in accuracy for applications where microsecconds matter.
|
|
Quad(x4) 10Gb Port Capture
|
High Port Density is critical when rackspace is both expensive and on limited power budgets. Every 1U and each PCIe slot`s occupancy can make a difference to monthly recurring costs. RazorCapture provides x4 ports for each PCIe adapter under 25 Watts total power consumption.
|
|
|

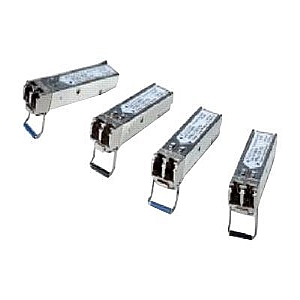

x4 SFP+ SR Transceviers Included
|
Four 10G SR SFP+ tranceivers are included at no extra cost providing a complete package that is ready to go.
|
|
x4 10Gbit SR Fiber Optic taps included
|
Four 10G SR fiber taps are included at no extra cost providing a complete package that is ready to go.
|
|
|
Open Source & Formats
|
All software is open with source code included for, driver, library and sample applications. Primary output format is nanoseccond(or microseccond) industry standard PCAP. Fully 100% compatiable with WireShark, tcpdump and all other pcap based tools.
|
|
|
Platforms
|
All Linux 2.6 & 3.0 kernels supported
|
|
|
Contact us for Windows Support
|
|
|
Contact us for VxWroks Support
|
|
